Habasit TF-10平皮带Main industry segments
Letter sorting, Yarn processing
Habasit TF-10平皮带Applications
Driving belt, Tangential belt
Special features
Abrasion resistant, Dimensionally stable, Energy saving, High modulus of elasticity, High uniformity of belt speed,
Low initial tension, Simple and fast joining method

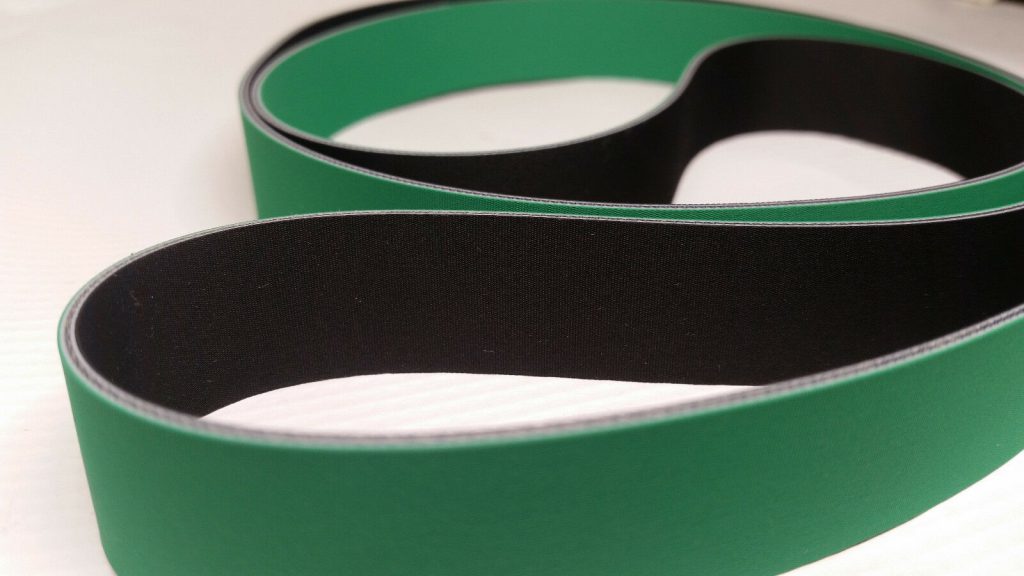

Product Construction / Design
Pulley side material Acrylonitrile-Butadiene-Rubber (NBR)
Pulley side surface Fine textile structure
Pulley side color Black
Traction layer (material) Aramid fabric
Number of Fabrics 1
Opposite side material Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (whirl
side)
Opposite side surface Fine textile structure
Opposite side color Green
Product characteristics
Drive determination Double-sided power transmission
Antistatically equipped Yes
Adhesive free joining method Yes
Food suitability, FDA conformance No
Food suitability, EU conformance No
Technical data
Thickness of belt 1.7 mm 0.07 inch
Mass of belt (belt weight) 1.8 kg/m² 0.358 lb/sqft
Tensile force for 1% elongation (k1% after running in) per unit
of width (Habasit standard SOP3-013)
10 N/mm 57 lbf/in
Nominal peripheral force per unit of width 10 N/mm 57 lbf/in
Min. operating temperature admissible (continuous) -20 °C -4 °F
Max. operating temperature admissible (continuous) 65 °C 149 °F
Seamless manufacturing width 1200 mm 47.24 inch
All data are approximate values under standard climatic conditions: 23°C/73°F, 50% relative humidity (DIN 50005/ISO 554).
Power Transmission Belts
TF-10
Product Data Sheet (Released) 06.08.2019
Joining related properties
Link to JDS:
Joining method Flexproof
10 x 120
Pulley diameter (minimum) mm
inch
25
0.98
Pulley diameter minimum with
counter flection
mm
inch
25
0.98
Chemical resistance
Link to ‘Chemical resistance information’: http://www.habasit.com/en/chemical-resistance.htm
Mode of use or conveyance
Power transmission, Tangential drive
Calculations
With power transmission belts a calculation at least of the belt width and initial elongation is highly recommended.
For this serves the Habasit SeleCalc calculation program. The easiest way is to have belt drives calculated by
Habasit representatives.
Recommendation
Follow the Installing and Maintenance Instructions which are supplied with each product delivery
For details consult ‘Storage and handling requirements for belts and machine tapes’ or contact Habasit, Protect
belts from sunlight/UV-radiation/dust and dirt. Store spare belts in a cool and dry place and if possible in their
original packaging.
Do not force belt on pulleys, Do not twist or fold belt, Keep belt edges free of any installation/machine contact, This
product has not been tested according to ATEX standards (atmospheres with explosion risk – ATEX 95 regulation or
EU directive 2014/34/EU) and therefore is subject to user’s analysis in the respective environment
Group Aramid Power Transmission Belts
Sub-Group TF Aramide Power Transmission Belts
Item number H010100168
